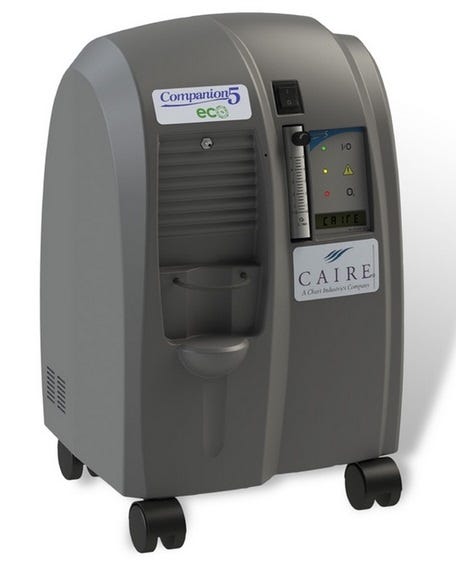

Caire Companion 5 Stationary Oxygen Concentrator
In Stock
- Up to 5 LPM continuous flow
- Weighs only 36lbs
- User-friendly control panel
- Get support from knowledgeable experts
Caire Companion 5 Home Oxygen Concentrator - Overview
A continuous flow oxygen concentrator by Caire Inc., Companion 5 can produce up to 5 liters of oxygen per minute (LPM). Its ultraSILENT Technology and straightforward user interface make it the ideal choice for patients. Just press the on/off button to start the oxygen treatment. The Caire Companion 5 is 40 dBA at 2 LPM, which is about as loud as a calm library. To notify users of any operating concerns, the control panel has LED indicators, a flow control knob, and loud alarms. Intake noise is muffled by a sophisticated combination of an intake filter and a two-chamber muffler. The exhaust gas is silenced by the purge muffler to a noise level of 40dBA at 2 LPM which easily goes unnoticed.
The metal cannula barb provides a secure connection and each unit comes with a humidifier bottle attachment. If you require humidification, simply place the humidifier bottle on the stand and secure it with the built-in elastic strap. Attach the humidifier to the cannula barb on the device and attach your nasal cannula to the humidifier lid to receive proper airflow.
The Caire Companion 5 Stationary Oxygen Concentrator also offers Caire?? autoFLOW??technology which reduces power by 15%??aking is one of the most energy-efficient stationary oxygen concentrators. While running at 2LPM, the unit will use about 250 watts of electricity. Even at the highest setting, when it is working its hardest, it doesn't use over 350 watts of electricity.
Caire Companion 5 Oxygen Concentrator - Durability
The Companion 5 oxygen concentrator offers a rugged exterior with a built-in top handle, as well as four sturdy casters, allowing this 36 pound device to easily move from room to room. Care Companion 5 is equipped with autoFLOW??technology that optimizes oxygen flow for patients. This technology allows the oxygen concentrator to draw less power than traditional units, reduce the overall operating temperature, and ultimately extend the life of the machine. The high-capacity compressor improves the longevity of all major components of the device. Thanks to the rugged design, the Caire Companion 5 concentrator only requires service once every two years.
Caire Companion 5 is also equipped with high-capacity sieve beds and moisture-resistant MGB SecoBlen sieve mixture which improves the quality of this device. To further improve the life of the components, the autoFLOW??technology which is variable valve timing based on flow rate which also optimizes the overall performance of this oxygen concentrator. The autoFLOWTM technology improves the performance by significantly reducing power draw, decreasing the operating temperature and providing cooling, and also reducing the wear on the compressor by 25% at 2LPM.
Caire Companion 5 Oxygen Concentrator - Service
Caire Companion 5 requires service every 2 years. An optional gross particle filter is available for purchase. This filter further refines air quality received during therapy. The device has a large legible hour meter which shows diagnostic alarm codes, allowing you to call for help diagnosing any issue, perhaps saving unnecessary service visits.
The Caire Companion 5 Oxygen Concentrator includes three LED indicators and audible alarms to alert the user of any system errors. The indicators are green, yellow, and red. Common alarms include low oxygen, no power, and system malfunction. Reference the user manual to troubleshoot these alarms. If problems persist, contact our knowledgeable customer care team for assistance.
Caire Companion 5 - Product Highlights
- Caire Companion 5 Home Oxygen Concentrator delivers 0.5 to 5.0 LPM of continuous flow oxygen, in 0.5LPM increments.
- Easy access to intake filter, maintenance required only every 2 years.
- Quiet operation, only 40 dBA at 2LPM, making it easier to sleep while using the Companion 5.
- Compact size easily fits into most areas in your home, equipped with durable casters and top handle for easy movability.
- A single lumen cannula with 7-foot tubing, with a maximum of 50 feet oxygen tubing, is recommended to ensure proper breath detection and oxygen delivery.
- Compatible with most CPAP/BiPAP machines
Caire Companion 5 Home Concentrator - Provider Features
- Performance optimization through autoFLOW??Technology
- Unique design and advanced technology
- Easy access to the filter door
- Maintenance interval of 2 years
- Hour meter for accessing diagnostic alarm codes
- Modular design and lesser internal components
- Easily serviceable
- Delivered air goes through multiple levels of filtration
- An additional gross particle filter is also available.
Caire Companion 5 Stationary Oxygen Concentrator - Patient Features
- A compact body which can easily fit in any home
- Less power draw
- Easily accessible humidifier stand
- Easy to read and use controls and alarms
Caire Companion 5 - Safety Features
- High flow alarm to indicate flow blockage and prevent overdraw
- Oxygen monitor
- Fire-proof plastic in the body
- Relief valve for compressor pressure
- Cannula barb made of robust metal
- Flow Meter
Caire Companion 5 Oxygen Concentrator - In The Box
- Caire Companion 5 unit
- Cannula
- User Manual
User Guide
Caire Companion 5 Stationary Oxygen Concentrator Service
Caire Companion 5 requires service every 2 years. An optional gross particle filter is available for purchase. This filter further refines air quality received during therapy. The device has a large legible hour meter which shows diagnostic alarm codes, allowing you to call for help diagnosing any issue, perhaps saving unnecessary service visits.
The Caire Companion 5 Oxygen Concentrator includes three LED indicators and audible alarms to alert the user of any system errors. The indicators are green, yellow, and red. Common alarms include low oxygen, no power, and system malfunction. Reference the user manual to troubleshoot these alarms. If problems persist, contact our knowledgeable customer care team for assistance.
Cleaning & Maintenance of Caire Companion 5 Oxygen Concentrator
Companion 5 is simple to maintain. Simply wipe down the exterior with a damp cloth or sponge to remove the buildup of any dirt or dust. Replace nasal cannula and tubing as needed and don’t use tubing longer than the recommended 50 feet. If using a humidifier, be sure to wash it regularly.
The air intake filter requires replacement every two years. Accessing the air intake filter doesn't require opening the case, simply access it through the filter door on the front panel.
Caire Companion 5 Home Oxygen Concentrator Product Highlights
Caire Companion 5 Home Oxygen Concentrator delivers 0.5 to 5.0 LPM of continuous flow oxygen, in 0.5LPM increments.
Easy access to intake filter, maintenance required only every 2 years.
Quiet operation, only 40 dBA at 2LPM, making it easier to sleep while using the Companion 5.
Compact size easily fits into most areas in your home, equipped with durable casters and top handle for easy movability.
A single lumen cannula with 7-foot tubing, with a maximum of 50 feet oxygen tubing, is recommended to ensure proper breath detection and oxygen delivery.
Compatible with most CPAP/BiPAP machines
Caire Companion 5 Provider Features
- Performance optimization through autoFLOW™ Technology
- Unique design and advanced technology
- Easy access to the filter door
- Maintenance interval of 2 years
- Hour meter for accessing diagnostic alarm codes
- Modular design and lesser internal components
- Easily serviceable
- Delivered air goes through multiple levels of filtration
- An additional gross particle filter is also available.
Caire Companion 5 Patient Features
- A compact body which can easily fit in any home
- Less power draw
- Easily accessible humidifier stand
- Easy to read and use controls and alarms
Caire Companion 5 Safety Features
- High flow alarm to indicate flow blockage and prevent overdraw
- Oxygen monitor
- Fire-proof plastic in the body
Caire Companion 5 Quick Start Guide
- Unpack Your Companion 5
- Getting to Know Your Companion 5 Review the user manual for any warnings, cautions, and supplementary device information. Learn how to use the Companion 5's main features including the User Control Panel.
- Connecting the Humidifier Bottle and the Cannula If using a humidifier bottle, fill it halfway with distilled water according to the manufacturer's instructions. Secure the bottle in the proper support stands with the elastic band. Connect the humidifier tubing to the bottle on one end and the Companion 5 output barb on the other. Connect a nasal cannula to the humidifier bottle's output barb. Connect the oxygen cannula to the Companion 5 outlet barb if you're not using a humidifier bottle.
- Power On and Warm-Up Connect the AC power wire to a wall socket. Toggle the Power Switch to "On." The external power indicator will display on the user control panel when the Companion 5 is correctly plugged in and the switch is toggled into the "ON" (I) position. A green indication will light up on the LED display when the Companion 5 is correctly plugged in. Please wait up to ten (10) minutes for the item to attain its performance standards after turning it on for the first time.
- Adjust Flow setting to Prescribed level Select the flow suggested by your physician using the Flow Control Knob.
Caire Companion 5 Stationary Oxygen Concentrator Parts
| Dimensions: | 21.5" (H) x 12.5" (W) x 13.5" (D) |
| Product Weight: | 36 pounds |
| Warranty: | 3 Year Standard |
| Alarms/Alerts: | Power failure, flow rate error, general system malfunction, low concentration with optional OCSI |
| FAA Approved: | No |
| Filters: | Intake Filter (two year replacement); HEPA Filter (lifetime) |
| Flow Settings: | Continuous Flow: 0.5LPM to 5 LPM |
| Manufacturer: | Caire |
| Noise Level: | 40 dBA @ 2LPM Continuous Flow |
| Operating Ranges, Intended for Use: | Temperature: 41°F to 104°F (5°C to 40°C), up to 95% relative humidity |
| Altitude: | Up to 9,878 feet |
| Outlet Pressure: | 4.6 PSIG |
| Oxygen Concentration: | 90% (+5.5% / -3%) |
| Average Power Consumption: | 285 W |
| Storage Ranges, Intended for Use: | Temperature: -40°F to 158°F (-40°C to 70°C), up to 95% relative humidity |
| Cannula and Tubing Length: | Standard single lumen nasal cannula up to 7 feet and tubing up to 50 feet maximum |
| Humidification: | Compatible with Standard Humidification Bottles |
